- Description
Features:
1. Adapts high performance CCD or CMOS image sensor
2. High resolution and clear image
3. Low illumination, 0-lux with IR day and night, full day surveillance
4. Supports backlight compensation supports auto white??? balance
5. High SNR, image clean, slightly supports auto digital shutter
6. Support auto digital gain
Specifications:
1. Sensor: 1/3 inch color CCD
2. Image device: Sony CCD
3. TV system: PAL/NTSC
4. Scanning system: 2:1 interlace
5. Synchronize system: internal
6. Illumination: 0 lux (IR on)
7. S/N ratio: Above or equal 48dB
8. Video output: 1.0Vp-p, 75II composite, BNC x 1
9. Gamma ratio: Above or equal 0.45
10. Focal length: 6mm fixed lens
11. Viewing angle: Vertical: 92 degree /53 degree
12. Zoom ratio: Fix
13. Control mode: Fix
14. Day/night: Auto
15. Backlight compensation: Auto
16. White balance: Auto
17. Gamma characteristic: Above or equal 0.15
18. Electronic shutter: PAL: 1/50 to 1/100,000 seconds, NTSC: 1/60 to 1/100,000 seconds

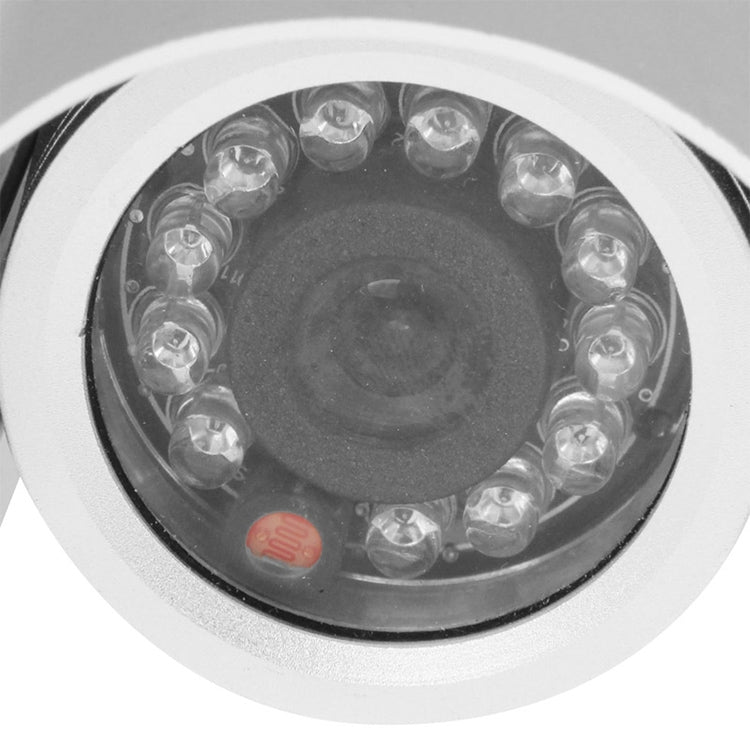

19. Infrared LED: Diameter 5, 36pcs IR LED
20. IR distance: 20 meters
21. Infrared spectrum: 850nm
22. Operating temperature: -10 to +50 degree C
23. Storage temperature: -40 to +60 degree C
24. Input voltage/current: DC 12V/500mA

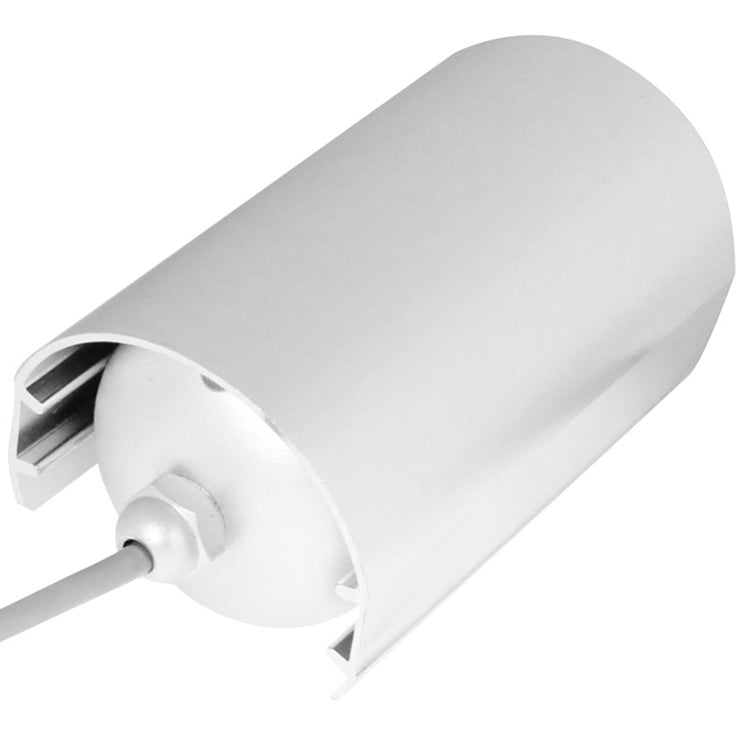

25. Case Material: Aluminum Alloy
26. Camera Dimensions (without bracket): 100(L) x 65(W) x 55(H) mm
27. Net Weight: 300g
1. Adapts high performance CCD or CMOS image sensor
2. High resolution and clear image
3. Low illumination, 0-lux with IR day and night, full day surveillance
4. Supports backlight compensation supports auto white??? balance
5. High SNR, image clean, slightly supports auto digital shutter
6. Support auto digital gain
Specifications:
1. Sensor: 1/3 inch color CCD
2. Image device: Sony CCD
3. TV system: PAL/NTSC
4. Scanning system: 2:1 interlace
5. Synchronize system: internal
6. Illumination: 0 lux (IR on)
7. S/N ratio: Above or equal 48dB
8. Video output: 1.0Vp-p, 75II composite, BNC x 1
9. Gamma ratio: Above or equal 0.45
10. Focal length: 6mm fixed lens
11. Viewing angle: Vertical: 92 degree /53 degree
12. Zoom ratio: Fix
13. Control mode: Fix
14. Day/night: Auto
15. Backlight compensation: Auto
16. White balance: Auto
17. Gamma characteristic: Above or equal 0.15
18. Electronic shutter: PAL: 1/50 to 1/100,000 seconds, NTSC: 1/60 to 1/100,000 seconds
19. Infrared LED: Diameter 5, 36pcs IR LED
20. IR distance: 20 meters
21. Infrared spectrum: 850nm
22. Operating temperature: -10 to +50 degree C
23. Storage temperature: -40 to +60 degree C
24. Input voltage/current: DC 12V/500mA
25. Case Material: Aluminum Alloy
26. Camera Dimensions (without bracket): 100(L) x 65(W) x 55(H) mm
27. Net Weight: 300g
